17 1/2" IADC:S223 Reverse Circulation (RC) PDC bit
IADC:S223
ID:WFNCSR445S19301B
Design Specifications
Blade Qty 3
Total Cutters 27
Primary Cutter Size 19.25mm
Assistant Cutter Size Non
Gauge Cutter Size 13.44mm or PDC block
Anti-quake ball size Non
Sucking nozzle Qty 3
Sucking nozzle area 14800mm²
Crown length 320mm
Gauge length 130mm
Connetion Size 7 5/8REG
Make-up Torque 16.63-23.7kN.m
Assembly groove wID:th 265mm
Bit Weight ≈250kg
Operating Parameters
Rotary speed 60-200RPM
Bit Weight on bit 40-200KN

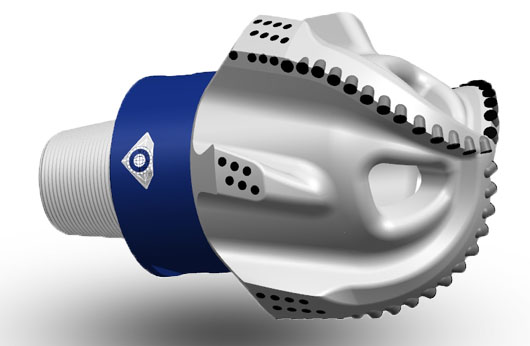

Reverse_Circulation_PDC_drill_bit_WOLFNI_17_1_2in_444.5mm-3


Managment System Certification

ISO9001

3-3.pngCertificate Search
Name:            ISO9001
Reference:            00112Q226862R0S/5100
Issued By:            CQC
Validity Period:            2012-03-27 ~ 2016-02-26
Range:            Design and manufacture of PDC drill bit


Product Certification

API

3-3.pngCertificate Search

Name:            API
Reference:            7-1-1077
Issued By:            American Petroleum Institute
Validity Period:            2014-03-19 ~ 2017-03-19
Range:            PDC Bits

Personalized design technology


Cutter placement with 3D-software            Simulation analysis of flow field well bottom            Computer simulation processing            Reverse detection technology

1.Cutter placement with

3D-software.

2.Simulation analysis

of flow field well bottom.

3.Computer simulation

processing.

4.Reverse detection

technology.

Reverse detection technology            Analog processing and testing            Optimization of the angle of the cutting teeth            Three-dimensional model Stress Analysis

5.Reverse detection

technology.

6.Analog processing

and testing

7.Optimization of the

angle of the cutting teeth

8.Three-dimensional

model Stress Analysis

Bottomhole flow field vector            Nozzle velocity vector distribution            Nozzle Flow Chart            Wolfni Engineer

9.Bottomhole flow

field vector

10.Nozzle velocity

vector distribution

11.Nozzle Flow

Chart

12.Wolfni Engineer

Bit Connection Size And Parameter

Bit Connection Size And Parameter

Bit Size

Connection Size

Make-up Torque

O.D. of Connection

I.D. of Connection

3 3/4”~4 1/2”

2 3/8”REG

2.40-4.12kN.m

3 1/8”

1”

4 5/8”~5”

2 7/8”REG

4.10-6.20kN.m

4 1/8”

1 1/4”

5 1/8”~7 3/8”

3 1/2”REG

6.90-10.23kN.m

4 3/4”

1 1/2”

7 13/32”~9 3/8”

4 1/2”REG

16.63-23.71kN.m

6 3/4”

1 3/4”

9 13/32”~14 1/2”

6 5/8”REG

49.56-51.43kN.m

8”

3”

14 9/16”~18 1/2”

7 5/8”REG

64.52-81.35kN.m

9 3/4”

3”

Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.





















1-1.pngReturn PDC steel body series

2-2.pngReturn Leading Products




Design character:

■Spiral blades increase contact area between PDCbit and well wall to keep drilling stably, to prolonglifespan of PDC bits.

■Adopting CFD emulational technology to calculateto optimize PDC bit, then reduce possibility of heavybreaking and wearing of bit.

■Special design of back-rake angles will decreasetorque on bit, increase bit aggressiveness, improveefficiency of ROP.

■Suit for well drilling in low compressive strength, even texture soft-medium rock formation. Such as wake shale, density marlstone, strong batt, wake sandstone, limestone, and soft gravel, etc.
