PDC bit cutter

HM PDC cutter
IADC:
ID:
Design Specifications
Operating Parameters

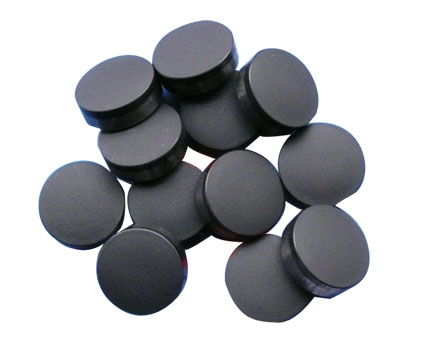

HM ---- Cambered face PDC cutter

HM ---- Cambered face PDC cutter

   This type of the PDC cutter is different from the common ones. It has higher impact resistance with its cambered face shape of diamond surface.

Specification:



ModelDiameter-DHeight-HDiamond    Thickness-ETungsten    Carbide Chamfer-β
HM130513.44mm5.00mm1.80-2.50mm0.5×45°
HM130813.44mm8.00mm1.80-2.50mm0.5×45°
HM131313.44mm13.20mm1.80-2.50mm0.5×45°
HM160816.00mm8.00mm1.80-2.50mm0.5×45°
HM161316.00mm13.20mm1.80-2.50mm0.5×45°
HM190819.05mm8.00mm1.80-2.50mm0.5×45°
HM191319.05mm13.20mm1.80-2.50mm0.5×45°



Note: customized sizes are available.
