SDP ---- PDC Cutter for coal mine

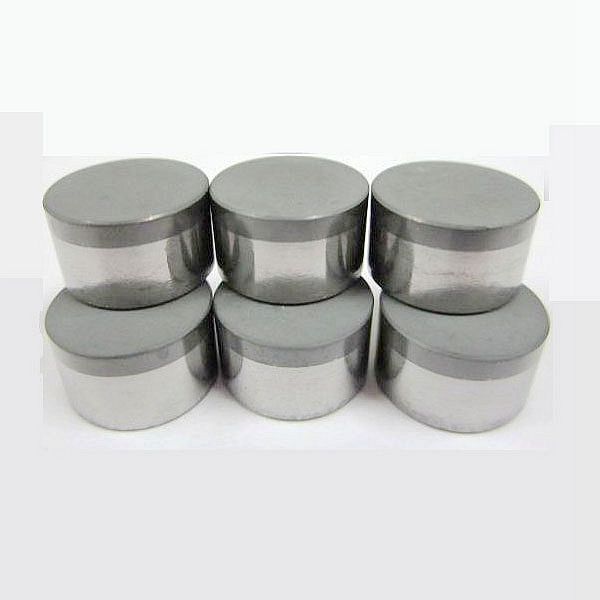

PDC (polycrystalline diamond compact) is composed of synthetic diamond and tungsten carbide under high temperature and high pressure. This kind of PDC cutters is for coal mine, mining, geological exploration, water conservancy and hydropower, highway, railway, bridge and construction.
Types: flat PDC cutters, Cambered face PDC cutters (patented product), GK PDC cutters (patented product), ZX PDC cutters (patented product).
Specification:
Model
| Diameter-D (mm) | Height-H (mm) | Diamond thickness-E(mm) | Diamond chamfer-α | Tungsten carbide-β |
| 1304M | 13.44 | 4.50 | 1.8±0.1 | 0.3x45° | 0.5x45° |
| 1305M | 16.00 | 5.00 | 1.8±0.1 | 0.3x45° | 0.5x45° |
| 1308M | 13.44 | 8.00 | 1.8±0.1 | 0.3x45° | 0.5x45° |
| 1608M | 16.00 | 8.00 | 1.8±0.1 | 0.3x45° | 0.5x45° |
| 1908M | 19.00 | 8.00 | 1.8±0.1 | 0.3x45° | 0.5x45° |
Note: customized sizes are available.
