PDC bit cutter

S PDC cutter
IADC:Non
ID:Non
Design Specifications
Operating Parameters

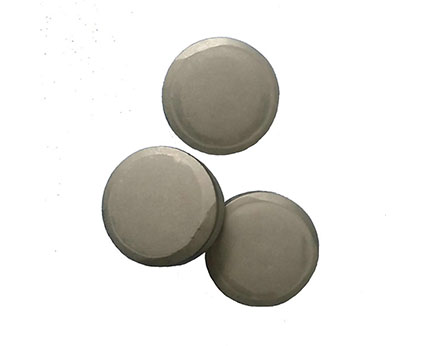

Fast speed cutter---S series

Fast speed cutter---S series.jpg

   S series have five-time working life and penestration rates compared with other PDC cutters on anchor drill bits.. S series cutters can save your every cost on each hole drilling.

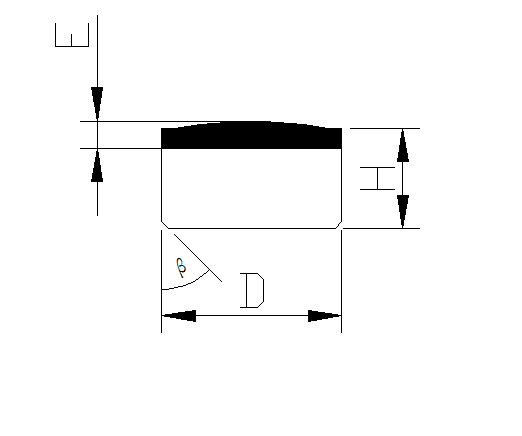

Specification:

ModelDiameter-DHeight-HDiamond Thickness-ETungsten Carbide Chamfer-β
S130513.44mm5.00mm1.20mm0.5×45°
S130813.44mm8.00mm1.20mm0.5×45°
S160816.00mm8.00mm1.20mm0.5×45°
S190819.05mm8.00mm1.20mm0.5x45°



Note: customized sizes are available.
