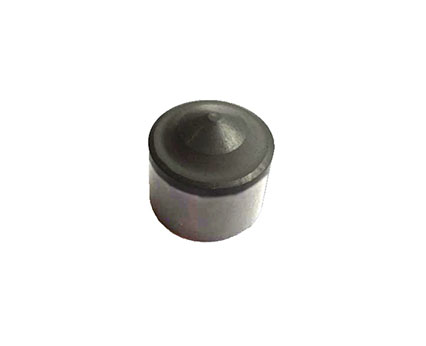

ZX PDC cutter
With high
speed, durability and toughness, when drilling the homogeneous
formation, the lip of ZX can scrape the stratum, and the spherical
prominence can control the footage.
Specification:
| Size | Diameter (D) | Height(H) | Diamond Thickness (E) | Carbide Chamfer (β) |
| ZX1305 | 13.44±0.05mm | 5.00±0.1mm | 1.5±0.1mm | 0.5mm×45° |
| ZX1308 | 13.44±0.05mm | 8.00±0.1mm | 1.8±0.1mm | 0.5mm×45° |
| ZX1313 | 13.44±0.05mm | 13.20±0.1mm | 2.0±0.2mm | 0.5mm×45° |
| ZX1608 | 16.00±0.05mm | 8.00±0.1mm | 2.0±0.2mm | 0.5mm×45° |
| ZX1613 | 16.00±0.05mm | 13.20±0.1mm | 2.0±0.2mm | 0.5mm×45° |
| ZX1908 | 19.05±0.05mm | 8.00±0.1mm | 2.0±0.2mm | 0.5mm×45° |
| ZX1913 | 19.05±0.05mm | 13.20±0.1mm | 2.0±0.2mm | 0.5mm×45° |
Note: customized sizes are available.
