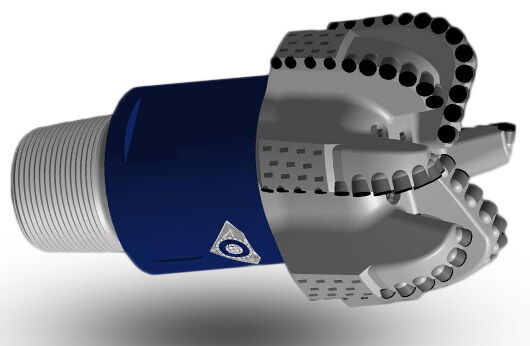

PDC drill bit matrix body
12 1/4in IADC:M323(311.15mm)
IADC:M323
ID:WFN311M19601A
Design Specifications
Blade Qty 6
Total Cutters 66
Primary Cutter Size 19.05mm
Assistant Cutter Size Non
Gauge Cutter Size 13.44mm
Anti-quake ball size Non
Nozzle Qty. 7
Crown length 168.85mm
Gauge length 76.85mm
Connetion Size 6 5/8REG
Make-up Torque 38―43.4kN·m
Assembly groove width 180mm
Bit Weight 160kg
Operating Parameters
Rotary speed 60-240RPM
Flow rate 50-60L/S
Weigh on bit 30-120KN

PDC-drill-bit-matrix-body-12-1-4in-IADC-M323-311-15mmNote:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.



1-1.pngReturn PDC matrix body series

2-2.pngReturn Leading Products


Design character:

■Special design of back-rake angles will decrease torque on bit, increase bit aggressiveness, improve efficiency of ROP.

■the hydrofoil shape of the gauge channels hydralic fluid and cutting to the annulus. This streamlined flow deters bailing initiation caused by vortices and eddies.

■the hydrofoil shape of the gauge channels hydralic fluid and cutting to the annulus. This streamlined flow deters bailing initiation caused by vortices and eddies.

■These back redressings at the base of gauge avoid difficult of pulling PDC bits our of hole in unconsolidated formation, and trim wall of well.
