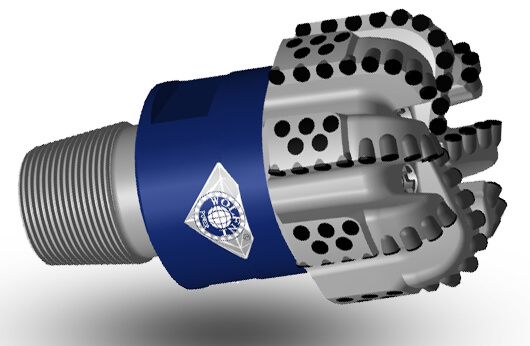

PDC drill bit matrix body
8 1/2in IADC:M433(215.9mm)
IADC:M433
ID:WFN216M13801A
Design Specifications
Blade Qty 8
Total Cutters 46
Primary Cutter Size 13.44mm
Assistant Cutter Size Non
Gauge Cutter Size 13.44mm or PDC block
Anti-quake ball size Non
Nozzle Qty. 6
Nozzle type 12/32″TFA0.663in²
Crown length 115mm
Gauge length 63.5mm
Connetion Size 4 1/2REG
Make-up Torque 16.63―23.71kN·m
Assembly groove width 120mm
Bit Weight ≈65kg
Operating Parameters
Rotary speed 60-260RPM
Weigh on bit 30-100KN

PDC drill bit matrix body | PDC-drill-bit-matrix-body-8 1/2in IADC:M433(215.9mm) | oil well gasNote:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.



1-1.pngReturn PDC matrix body series

2-2.pngReturn Leading Products


Design character:

■Special design of back-rake angles will decrease torque on bit, increase bit aggressiveness, improve efficiency of ROP.

■Adopting CFD emulational technology to calculate to optimize PDC bit, then reduce possibility of heavy breaking and wearing of bit.

■Special gauge design has more cutters placed on gauge to prolong life time of PDC bit in high abrasive formation, to avoid diameter shrinkage for gauge wearing.

■Suit for well drilling in low compressive strength, even texture soft-medium rock formation. Such as wake shale, density marlstone, strong batt, wake sandstone, limestone, and soft gravel, etc.
