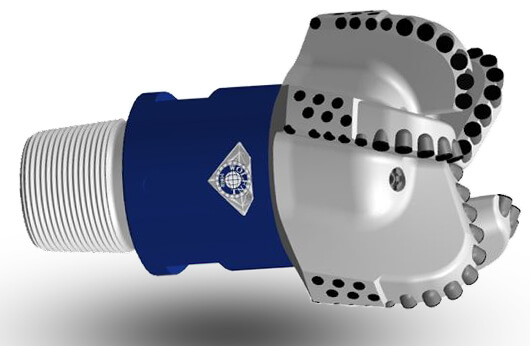

PDC drill bit steel body
13 5/8″WS519GSR(346.1mm)
IADC:S323
ID:WFN346S19501B
Design Specifications
Blade Qty 5
Total Cutters 60
Primary Cutter Size 19.05mm
Assistant Cutter Size Non
Gauge Cutter Size 13.44mm
anti-quake ball size Non
Nozzle Qty 7
Crown length 214mm
Gauge length 79mm
Connetion Size 6 5/8REG
Make-up Torque 38―43.4kN·m
Assembly groove wID:th 180mm
Bit Weight 114.8kg
Operating Parameters
Rotary spee 60-220RPM
Flow rate 55-70L/S
Weigh on bit 40-140KN

pdc-bit-13-5-8in-346-1mm-IADC-S323


Managment System Certification

ISO9001

3-3.pngCertificate Search
Name:            ISO9001
Reference:            00112Q226862R0S/5100
Issued By:            CQC
Validity Period:            2012-03-27 ~ 2016-02-26
Range:            Design and manufacture of PDC drill bit


Product Certification

API

3-3.pngCertificate Search

Name:            API
Reference:            7-1-1077
Issued By:            American Petroleum Institute
Validity Period:            2014-03-19 ~ 2017-03-19
Range:            PDC Bits

Personalized design technology


Cutter placement with 3D-software            Simulation analysis of flow field well bottom            Computer simulation processing            Reverse detection technology

1.Cutter placement with

3D-software.

2.Simulation analysis

of flow field well bottom.

3.Computer simulation

processing.

4.Reverse detection

technology.

Reverse detection technology            Analog processing and testing            Optimization of the angle of the cutting teeth            Three-dimensional model Stress Analysis

5.Reverse detection

technology.

6.Analog processing

and testing

7.Optimization of the

angle of the cutting teeth

8.Three-dimensional

model Stress Analysis

Bottomhole flow field vector            Nozzle velocity vector distribution            Nozzle Flow Chart            Wolfni Engineer

9.Bottomhole flow

field vector

10.Nozzle velocity

vector distribution

11.Nozzle Flow

Chart

12.Wolfni Engineer

Bit Connection Size And Parameter

Bit Connection Size And Parameter

Bit Size

Connection Size

Make-up Torque

O.D. of Connection

I.D. of Connection

3 3/4”~4 1/2”

2 3/8”REG

2.40-4.12kN.m

3 1/8”

1”

4 5/8”~5”

2 7/8”REG

4.10-6.20kN.m

4 1/8”

1 1/4”

5 1/8”~7 3/8”

3 1/2”REG

6.90-10.23kN.m

4 3/4”

1 1/2”

7 13/32”~9 3/8”

4 1/2”REG

16.63-23.71kN.m

6 3/4”

1 3/4”

9 13/32”~14 1/2”

6 5/8”REG

49.56-51.43kN.m

8”

3”

14 9/16”~18 1/2”

7 5/8”REG

64.52-81.35kN.m

9 3/4”

3”

Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.





















1-1.pngReturn PDC steel body series

2-2.pngReturn Leading Products


Design character:

■These back redressings at the base of gauge avoid difficult of pulling PDC bits our of hole in unconsolidated formation, and trim wall of well.

■Adopting CFD emulational technology to calculate to optimize PDC bit, then reduce possibility of heavy breaking and wearing of bit.

■Medium parabolic profiles PDC bit bounce lateral smally, make wall of well smoothly. This design suit for motor / rotary drilling, for high abrasive formation.

■Suit for well drilling in low compressive strength, even texture soft-medium rock formation. Such as wake shale, density marlstone, strong batt, wake sandstone, limestone, and soft gravel, etc.
