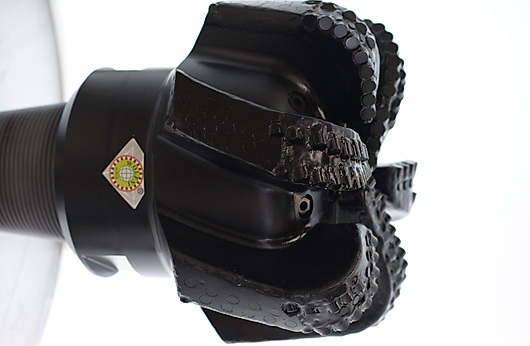

PDC drill bit steel body
16″WS616GDSV(406mm)
IADC:S423
ID:WFN406S16601A
Design Specifications
Crown length 233mm
Blade Qty 6
Assembly groove wID:th 223.5mm
Assistant Cutter Size 13.44mm
anti-quake ball size 13.44mm
Nozzle Qty 12
Make-up Torque 46.1-54.2kN·m
Gauge length 133mm
Connetion Size 7 5/8REG
Bit Weight 193kg
Total Cutters 112
Primary Cutter Size 15.88mm
Operating Parameters
Rotary speed 60-200RPM
Flow rate 70-100L/S
Weigh on bit 40-200KN



Managment System Certification

ISO9001

3-3.pngCertificate Search
Name:            ISO9001
Reference:            00118Q32263R2S/5100
Issued By:            CQC
Validity Period:            2018-03-12 ~ 2021-03-5
Range:            Design and manufacture of PDC drill bit


Product Certification

API

3-3.pngCertificate Search

Name:            API
Reference:            7-1-1077
Issued By:            American Petroleum Institute
Validity Period:            2014-03-19 ~ 2017-03-19
Range:            PDC Bits

Personalized design technology


Cutter placement with 3D-software           Simulation analysis of flow field well bottom           Computer simulation processing           Reverse detection technology

1.Cutter placement with

3D-software.

2.Simulation analysis

of flow field well bottom.

3.Computer simulation

processing.

4.Reverse detection

technology.

Reverse detection technology           Analog processing and testing           Optimization of the angle of the cutting teeth           Three-dimensional model Stress Analysis

5.Reverse detection

technology.

6.Analog processing

and testing

7.Optimization of the

angle of the cutting teeth

8.Three-dimensional

model Stress Analysis

Bottomhole flow field vector           Nozzle velocity vector distribution           Nozzle Flow Chart           Wolfni Engineer

9.Bottomhole flow

field vector

10.Nozzle velocity

vector distribution

11.Nozzle Flow

Chart

12.Wolfni Engineer

Bit Connection Size And Parameter

Bit Connection Size And Parameter

Bit Size

Connection Size

Make-up Torque

O.D. of Connection

I.D. of Connection

3 3/4”~4 1/2”

2 3/8”REG

2.40-4.12kN.m

3 1/8”

1”

4 5/8”~5”

2 7/8”REG

4.10-6.20kN.m

4 1/8”

1 1/4”

5 1/8”~7 3/8”

3 1/2”REG

6.90-10.23kN.m

4 3/4”

1 1/2”

7 13/32”~9 3/8”

4 1/2”REG

16.63-23.71kN.m

6 3/4”

1 3/4”

9 13/32”~14 1/2”

6 5/8”REG

49.56-51.43kN.m

8”

3”

14 9/16”~18 1/2”

7 5/8”REG

64.52-81.35kN.m

9 3/4”

3”

Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.





















1-1.pngReturn PDC steel body series

2-2.pngReturn Leading Products



Design character:

■These back redressings at the base of gauge avoid difficult of pulling PDC bits our of hole in unconsolidated formation, and trim wall of well.

■ Spiral blades increase contact area between PDC bit and well wall to keep drilling stably, to prolong lifespan of PDC bits.

■Placement of stability cutters let PDC bits have good stability in drilling in abrasive formation, have longer life time. Then cost of drilling will be lower accordingly.

■Suit for well drilling in low compressive strength, even texture medium rock formation. Such as wake shale, density marlstone, strong batt, wake sandstone, limestone, and soft gravel, etc.
