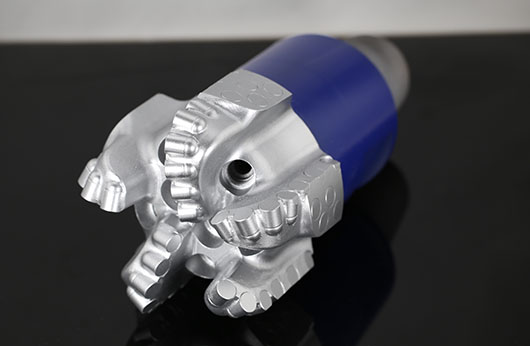

PDC drill bit steel body
6″WS513R(152.4mm)
IADC:S333
ID:WFN152S13501A
Design Specifications
Blade Qty 5
Total Cutters 85
Primary Cutter Size 13.44mm
Assistant Cutter Size Non
Gauge Cutter Size 13.44mm
anti-quake ball size Non
Nozzle Qty. 7
Crown length 101mm
Gauge length 48mm
Connetion Size 3 1/2REG
Make-up Torque 6.90-10.23kN.m
Assembly groove wID:th 100mm
Bit Weight 16.4kg
Operating Parameters
Rotary speed 60-300RPM
Flow rate 15-25L/S
Bit Weight on bit 20-80KN

This design increases contact area between PDC bit and well wall, improves wear resistance of gauge. This kind of PDC bit performs stably in horizontal drilling.


Managment System Certification

ISO9001

3-3.pngCertificate Search
Name:ISO9001
Reference:00112Q226862R0S/5100
Issued By:CQC
Validity Period:2012-03-27 ~ 2016-02-26
Range:Design and manufacture of PDC drill bit


Product Certification

API

3-3.pngCertificate Search

Name:API
Reference:7-1-1077
Issued By:American Petroleum Institute
Validity Period:2014-03-19 ~ 2017-03-19
Range:PDC Bits




Personalized design technology


Cutter placement with 3D-softwareSimulation analysis of flow field well bottomComputer simulation processingReverse detection technology

1.Cutter placement with

3D-software.

2.Simulation analysis

of flow field well bottom.

3.Computer simulation

processing.

4.Reverse detection

technology.

Reverse detection technologyAnalog processing and testingOptimization of the angle of the cutting teethThree-dimensional model Stress Analysis

5.Reverse detection

technology.

6.Analog processing

and testing

7.Optimization of the

angle of the cutting teeth

8.Three-dimensional

model Stress Analysis

Bottomhole flow field vectorNozzle velocity vector distributionNozzle Flow ChartWolfni Engineer

9.Bottomhole flow

field vector

10.Nozzle velocity

vector distribution

11.Nozzle Flow

Chart

12.Wolfni Engineer





Bit Connection Size And Parameter

Bit Connection Size And Parameter

Bit Size

Connection Size

Make-up Torque

O.D. of Connection

I.D. of Connection

3 3/4”~4 1/2”

2 3/8”REG

2.40-4.12kN.m

3 1/8”

1”

4 5/8”~5”

2 7/8”REG

4.10-6.20kN.m

4 1/8”

1 1/4”

5 1/8”~7 3/8”

3 1/2”REG

6.90-10.23kN.m

4 3/4”

1 1/2”

7 13/32”~9 3/8”

4 1/2”REG

16.63-23.71kN.m

6 3/4”

1 3/4”

9 13/32”~14 1/2”

6 5/8”REG

49.56-51.43kN.m

8”

3”

14 9/16”~18 1/2”

7 5/8”REG

64.52-81.35kN.m

9 3/4”

3”

Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.





















1-1.pngReturn PDC steel body series

2-2.pngReturn Leading Products


Download PDF :
6″WS513R(152.4mm)

Design character:

The back row cutters help to cut rocks, protect matrix, prolong lifetime and deduct cost of PDC bit

Wide flow design is adopted to pull drilling mud out of hole smoothly. This design is suit for fast drilling.

This design increases contact area between PDC bit and well wall, improves wear resistance of gauge. This kind of PDC bit performs stably in horizontal drilling.

The PDC bits are widely used in Changqing oilfield for horizontal drilling. Each bit can drill 600 to 800 meters depth. Speed of horizontal drilling can reach 20 to 25m/h.
