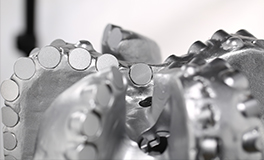

PDC drill bit steel body
8 1/2″WS516D(215.9mm)
IADC:S424
ID:WFN216S16531B
Design Specifications
Blade Qty 5
Total Cutters 63
Primary Cutter Size 15.88mm
Assistant Cutter Size 13.44mm
Gauge Cutter Size 13.44mm
anti-quake ball size Non
Nozzle Qty 5+2
Crown length 147mm
Gauge length 66mm
Connetion Size 4 1/2REG
Make-up Torque 16.3-21.7kN.m
Assembly groove wID:th 145mm
Bit Weight 48.7kg
Operating Parameters
Rotary speed 60-260RPM
Flow rate 28-40L/S
Bit Weight on bit 20-100KN

pdc_drill_bit_8_1_2in_IADCS424(215.90mm)_wolfni


Managment System Certification

ISO9001

3-3.pngCertificate Search
Name:ISO9001
Reference:00112Q226862R0S/5100
Issued By:CQC
Validity Period:2012-03-27 ~ 2016-02-26
Range:Design and manufacture of PDC drill bit


Product Certification

API

3-3.pngCertificate Search

Name:API
Reference:7-1-1077
Issued By:American Petroleum Institute
Validity Period:2014-03-19 ~ 2017-03-19
Range:PDC Bits




Personalized design technology


Cutter placement with 3D-softwareSimulation analysis of flow field well bottomComputer simulation processingReverse detection technology

1.Cutter placement with

3D-software.

2.Simulation analysis

of flow field well bottom.

3.Computer simulation

processing.

4.Reverse detection

technology.

Reverse detection technologyAnalog processing and testingOptimization of the angle of the cutting teethThree-dimensional model Stress Analysis

5.Reverse detection

technology.

6.Analog processing

and testing

7.Optimization of the

angle of the cutting teeth

8.Three-dimensional

model Stress Analysis

Bottomhole flow field vectorNozzle velocity vector distributionNozzle Flow ChartWolfni Engineer

9.Bottomhole flow

field vector

10.Nozzle velocity

vector distribution

11.Nozzle Flow

Chart

12.Wolfni Engineer





Bit Connection Size And Parameter

Bit Connection Size And Parameter

Bit Size

Connection Size

Make-up Torque

O.D. of Connection

I.D. of Connection

3 3/4”~4 1/2”

2 3/8”REG

2.40-4.12kN.m

3 1/8”

1”

4 5/8”~5”

2 7/8”REG

4.10-6.20kN.m

4 1/8”

1 1/4”

5 1/8”~7 3/8”

3 1/2”REG

6.90-10.23kN.m

4 3/4”

1 1/2”

7 13/32”~9 3/8”

4 1/2”REG

16.63-23.71kN.m

6 3/4”

1 3/4”

9 13/32”~14 1/2”

6 5/8”REG

49.56-51.43kN.m

8”

3”

14 9/16”~18 1/2”

7 5/8”REG

64.52-81.35kN.m

9 3/4”

3”

Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.





















1-1.pngReturn PDC steel body series

2-2.pngReturn Leading Products


Download PDF :
8 1/2″WS516D(215.9mm)

Design character:

■Special blade structure increases adaptive ability of PDC bits in complicated rock formation greatly.

These cutters reduce torque of PDC bit, help to cut rocks, to keep stable in drilling.

With this design, pressure to PDC bit is balanced in drilling, and flow area is wide enough to make PDC bit perform well in

various formations.

■When drilling in mixture formation of sandstone, mudstone, glutenite, limestone, dolomite, halite, this type of PDC bit

perform well overall. Each bit can drill 500 to 800 meters depth.
