Personalized design technology

1.Cutter placement with 3D-software.	2.Simulation analysis of flow field well bottom.	3.Computer simulation processing.	4.Reverse detection technology.
5.Reverse detection technology.	6.Analog processing and testing	7.Optimization of the angle of the cutting teeth	8.Three-dimensional model Stress Analysis
9.Bottomhole flow field vector	10.Nozzle velocity vector distribution	11.Nozzle Flow Chart	12.Wolfni Engineer

Bit Connection Size And Parameter

Return PDC steel body series

Return Leading Products

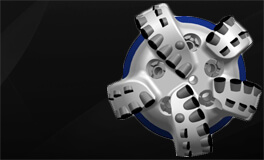

Design character：

■ Dual-row cutters.The back row cutters help to cut rocks, to protect matrix, to prolong lifetime and to deduct cost of PDC bit.

■These back redressings at the base of gauge avoid difficult of pulling PDC bits our of hole in unconsolidated formation, and trim wall of well.

■Placement of stability cutters let PDC bits have good stability in drilling in abrasive formation, have longer life time. Then cost of drilling will be lower accordingly.

■Suit for well drilling in low compressive strength, even texture medium rock formation. Such as wake shale, density marlstone, strong batt, wake sandstone, limestone, and soft gravel, etc.
