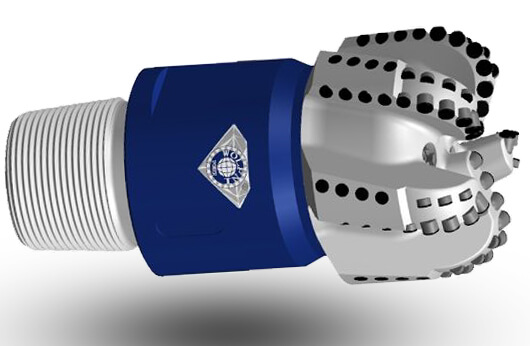

PDC drill bit steel body
9 1/2″WS516DGS(241.3mm)
IADC:S423
ID:WFN241S16509A
Design Specifications
Blade Qty 5
Total Cutters 67
Primary Cutter Size 15.88mm
Assistant Cutter Size 13.44mm
Gauge Cutter Size 13.44mm
anti-quake ball size Non
Nozzle Qty 6
Crown length 164mm
Gauge length 85mm
Connetion Size 6 5/8REG
Make-up Torque 38―43.4kN.m
Assembly groove wID:th 170mm
Bit Weight 75kg
Operating Parameters
Rotary speed 60-240RPM
Flow rate 40-50L/S
Weigh on bit 20-100KN



pdc-bit-9-1-2in-241-3mm-IADC-S423


Managment System Certification

ISO9001

3-3.pngCertificate Search
Name:            ISO9001
Reference:            00112Q226862R0S/5100
Issued By:            CQC
Validity Period:            2012-03-27 ~ 2016-02-26
Range:            Design and manufacture of PDC drill bit


Product Certification

API

3-3.pngCertificate Search

Name:            API
Reference:            7-1-1077
Issued By:            American Petroleum Institute
Validity Period:            2014-03-19 ~ 2017-03-19
Range:            PDC Bits

Personalized design technology


Cutter placement with 3D-software            Simulation analysis of flow field well bottom            Computer simulation processing            Reverse detection technology

1.Cutter placement with

3D-software.

2.Simulation analysis

of flow field well bottom.

3.Computer simulation

processing.

4.Reverse detection

technology.

Reverse detection technology            Analog processing and testing            Optimization of the angle of the cutting teeth            Three-dimensional model Stress Analysis

5.Reverse detection

technology.

6.Analog processing

and testing

7.Optimization of the

angle of the cutting teeth

8.Three-dimensional

model Stress Analysis

Bottomhole flow field vector            Nozzle velocity vector distribution            Nozzle Flow Chart            Wolfni Engineer

9.Bottomhole flow

field vector

10.Nozzle velocity

vector distribution

11.Nozzle Flow

Chart

12.Wolfni Engineer

Bit Connection Size And Parameter

Bit Connection Size And Parameter

Bit Size

Connection Size

Make-up Torque

O.D. of Connection

I.D. of Connection

3 3/4”~4 1/2”

2 3/8”REG

2.40-4.12kN.m

3 1/8”

1”

4 5/8”~5”

2 7/8”REG

4.10-6.20kN.m

4 1/8”

1 1/4”

5 1/8”~7 3/8”

3 1/2”REG

6.90-10.23kN.m

4 3/4”

1 1/2”

7 13/32”~9 3/8”

4 1/2”REG

16.63-23.71kN.m

6 3/4”

1 3/4”

9 13/32”~14 1/2”

6 5/8”REG

49.56-51.43kN.m

8”

3”

14 9/16”~18 1/2”

7 5/8”REG

64.52-81.35kN.m

9 3/4”

3”

Note:Orient can design and manufacture any types and sizes of PDC bits according to customer requirements.





















1-1.pngReturn PDC steel body series

2-2.pngReturn Leading Products




Download PDF :
9 1/2″WS516DGS(241.3mm)

Design character:

■Dual-row cutters.The back row cutters help to cut rocks, to protect matrix, to prolong lifetime and to deduct cost of PDC bit.

■These back redressings at the base of gauge avoid difficult of pulling PDC bits our of hole in unconsolidated formation, and trim wall of well.

■Spiral blades increase contact area between PDC bit and well wall to keep drilling stably, to prolong lifespan of PDC bits.

■Suit for well drilling in low compressive strength, even texture medium rock formation. Such as wake shale, density marlstone, strong batt, wake sandstone, limestone, and soft gravel, etc.
