Drill Pipe

2 3/8in Grade:XG
Design Specifications
Drill Pipe:
Weight Designation(lb/ft) 6.65
Wall thickness(mm) 7.11
Grade XG
Upset Type EU
Conne ction NC/REG/IF
Operating Parameters
Tool Joint:
OD(mm) 85.7
Inside Dia.of Pin(mm) 44.5
Outside of Pin(mm) 177.8
Outside of Pin(mm) 203.2

WOLFNi Oil Drill Pipe


Product details


Oil drill pipe

We can supply all kinds of drill pipes that are consistent with API SPEC 5DP or SY.

Drill pipes can be made as customers' requirements and be equipped with the same type of tool joints.




Advanced drill pipe production lines can transfer the welding parameters to the best position to ensure the quality of welding zone; the heat treatment process with the feature of internal and external cooling at the same time can make a more reliable and stable mechanical character. Application of automatic weight, length measurement and automatic spray records can ensure products' traceability. Application of thickening and heating lines and 1250 tons of upsetting machine can ensure the thickening size meet the standard of API SPEC 5DR Using of CN furnace for whole pipe body heating and quenching, tempering machine's advanced heat treatment process can ensure the pipe's mechanical character. Tube hydraulic straightening machine ensures the straightness and coaxiality of pipe body.


Standard drill pipe specifications
SpecOD of drill
pipe body
Wall thickness
of drill pipe
OD of
welding neck
Tool jointRSC
chamfer diameter
Approximation
quality
ODinternal diameter
of male thread
lenght of male
thread's OD
lenght of female
thread's OD
NO.1NO.1gradeupsetRSCDdp
mm
t
mm
Dteb
mm
D
mm
dp
mm
Lpb
mm
Lb
mm
Df
mm
Wdp
kg/m
A.2-12.5%MAX±0.8+0.4
-0.8
±6.4±6.4±0.4Calculated
1234567891011121314
IU
414.00EIUNC40101.608.38106.4133.471.4177.80254.00127.4022.42
414.00SIUNC40101.608.38106.4133.468.3177.80254.00127.4022.76
414.00GIUNC40101.608.38106.4139.761.9177.80254.00127.4023.61
414.00DIUNC40101.608.38106.4139.750.8177.80254.00127.4024.03
4-1/213.75EIUNC46114.306.88119.1152.485.7177.80254.00145.2622.50
2-3/86.65EEUNC2660.327.1165.185.744.5177.80203.2082.9010.45
2-3/86.65X,GEUNC2660.327.1165.185.744.5177.80203.2082.9010.58
2-7/210.40EEUNC3173.029.1981.0104.854.0177.80228.60100.4116.25
2-7/810.40X,GEUNC3173.029.1981.0104.850.8177.80228.60100.4116.50
2-7/810.40SEUNC3173.029.1981.0111.141.3177.80228.60100.4117.19
3-1/29.50EEUNC3888.906.4598.4120.768.3203.20266.70116.2815.77
3-1/213.30EEUNC3888.909.3598.4120.768.3203.20266.70116.2820.77
3-1/213.30XEUNC3888.909.3598.4127.065.1203.20266.70116.2821.76
3-1/213.30GEUNC3888.909.3598.4127.061.9203.20266.70116.2821.90
3-1/213.30SEUNC3888.909.3598.4127.054.0203.20266.70116.2822.22
3-1/213.50EEUNC3888.9011.4098.4127.065.1203.20266.70116.2824.67
3-1/213.50XEUNC3888.9011.4098.4127.061.9203.20266.70116.2825.07
3-1/213.50GEUNC3888.9011.4098.4127.054.0203.20266.70116.2825.38
3-1/213.50SEUNC4088.9011.4098.4139.757.2203.20266.70127.4026.19
EU
414.00EEUNC46101.608.38114.3152.482.6177.80254.00145.2623.67
414.00X,GEUNC46101.608.38114.3152.482.6177.80254.00145.2624.12
414.00SEUNC46101.608.38114.3152.476.2177.80254.00145.2624.46
4-1/213.75EEUNC50114.306.88127.0168.395.3177.80254.00153.9923.65
4-1/216.60EEUNC50114.308.56127.0168.395.3177.80254.00153.9927.51
4-1/216.60X,GEUNC50114.308.56127.0168.395.3177.80254.00153.9928.07
4-1/216.60SEUNC50114.308.56127.0168.388.9177.80254.00153.9928.47
4-1/220.00EEUNC50114.3010.92127.0168.392.1177.80254.00153.9932.93
4-1/220.00X,GEUNC50114.3010.92127.0168.388.9177.80254.00153.9933.63
4-1/220.00SEUNC50114.3010.92127.0168.376.2177.80254.00153.9934.34
4-1/216.60EIEUNC46114.308.56119.1168.382.6177.80254.00145.2627.36
4-1/216.60X,GIEUNC46114.308.56119.1158.876.2177.80254.00145.2627.73
4-1/216.60SIEUNC46114.308.56119.1158.869.9177.80254.00145.2628.04
4-1/220.00EIEUNC46114.3010.92119.1158.876.2177.80254.00145.2632.94
4-1/220.00XIEUNC46114.3010.92119.1158.869.9177.80254.00145.2633.69
4-1/220.00GIEUNC46114.3010.92119.1158.863.5177.80254.00145.2633.97
4-1/220.00SIEUNC46114.3010.92119.1158.857.2177.80254.00145.2634.23
IEU
519.50EIEUNC50127.009.19130.2168.395.3177.80254.00153.9931.79
519.50XIEUNC50127.009.19130.2168.388.9177.80254.00153.9932.58
519.50GIEUNC50127.009.19130.2168.382.6177.80254.00153.9932.95
519.50SIEUNC50127.009.19130.2168.369.9177.80254.00153.9933.60
519.50EIEU5(1/2)FH127.009.19130.2177.895.3203.20254.00170.6633.22
519.50X,GIEU5(1/2)FH127.009.19130.2177.895.3203.20254.00170.6633.61
519.50SIEU5(1/2)FH127.009.19130.2184.288.9203.20254.00170.6634.89
525.60EIEUNC50127.0012.70130.2168.388.9177.80254.00153.9940.73
525.60XIEUNC50127.0012.70130.2138.676.2177.80254.00153.9941.80
525.60GIEUNC50127.0012.70130.2168.369.9177.80254.00153.9942.11
525.60EIEU5(1/2)FH127.0012.70130.2177.888.9203.20254.00170.6642.14
525.60XIEU5(1/2)FH127.0012.70130.2177.888.9203.20254.00170.6642.51
525.60GIEU5(1/2)FH127.0012.70130.2184.288.9203.20254.00170.6643.35
525.60SIEU5(1/2)FH127.0012.70130.2184.282.6203.20254.00170.6643.75

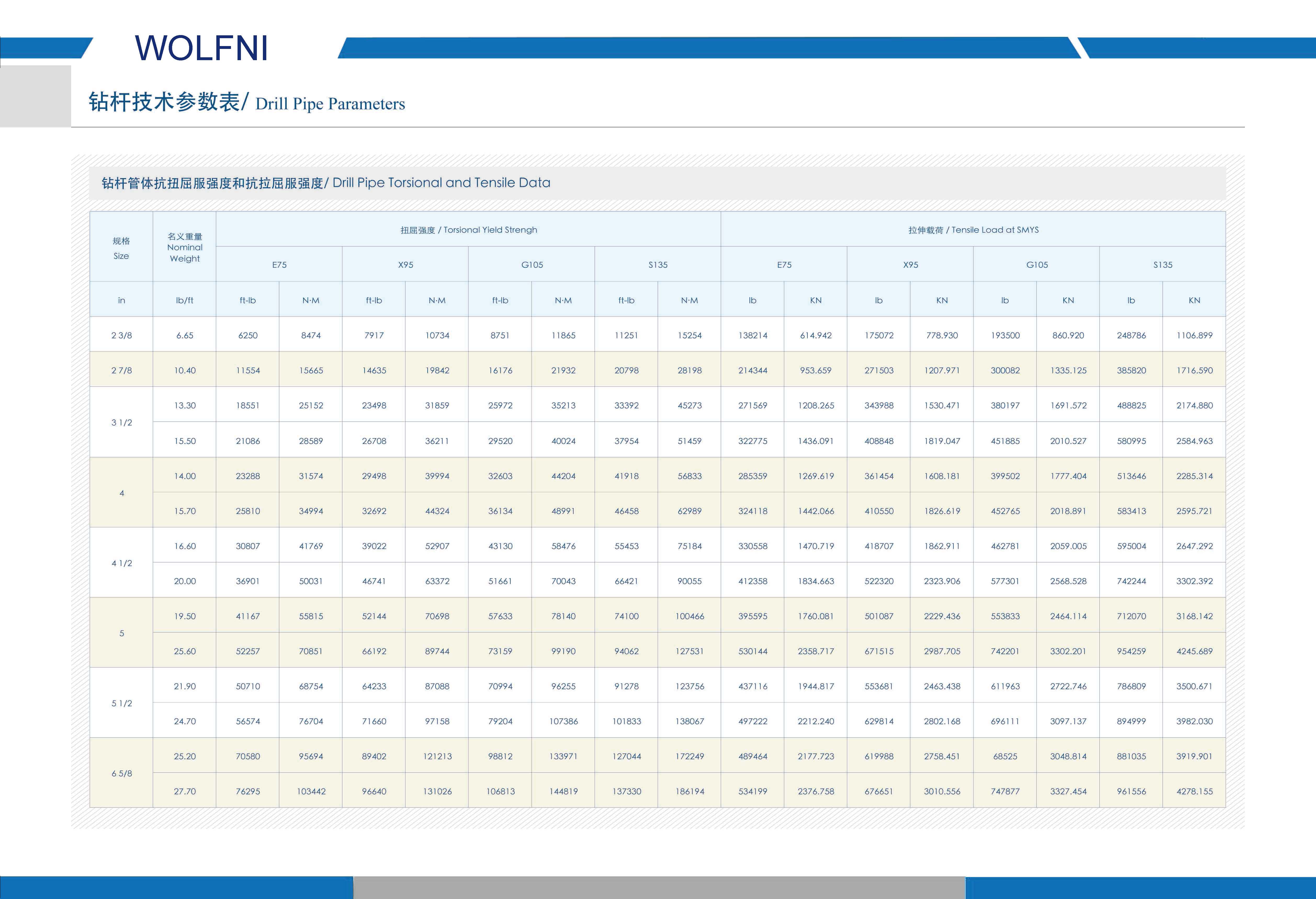

Tensile performance parameters

GradeYield strengthTensile strength
minmaxmin
PsiMpaPsiMpaPsiMpa
1E-7575.000517105.000724100000689
2X-9595.000655125.000862105000724
G-105105.000724135.000931115000793
S-135135.000931165.00011381450001000




Download PDF :

2 3/8in Grade:XG

WOLFNi Oil Drill Pipe (API)




●Drill Pipe Production Shop

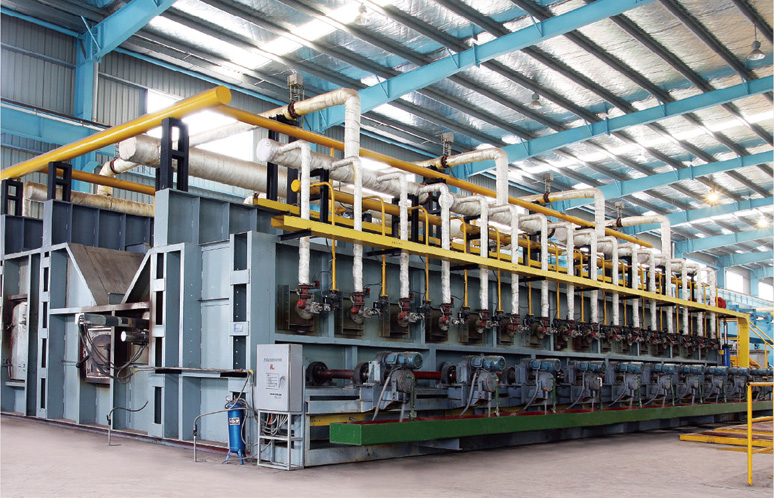

①Walking Heat Treatment Furnace
