HOME >Wolfni News >wolfni Oil Tools Sales Trend

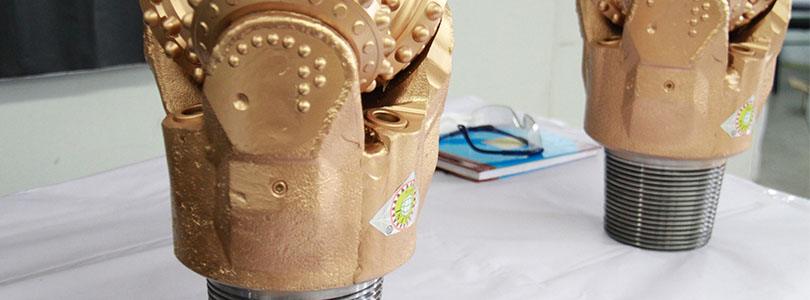

Tcicone bit 9 7/8"WK645(251.00mm) IADC:645 Roller bit ID:WFN021

Tcicone bit9 7/8"WK645(251.00mm)IADC:645

Contact information:

All sizes and IADC codes of drill bits are available.Special requirements of different models can be customized.If you need,please feel free to contact me,will provide you the best price!

IADC:645
ID:WFN021
DATE:June.2016
Design Specifications
 O-ring sealed journal bearing	Journal bearing structure with head bearing hardfaced and cone bearing silver plated to improve load capacity and anti-galling ability of the bearing. More wear and high-temperature resistant highly s
 Cutting structure	Hardfaced gage and tooth surfaces.
 Hardfacing on shirttail	This feature can provide better protection for seal and bearing to extend the bit’s service life.
Technical specifications:
IADC Code:	645
Weight:	90 KG
Package:	35×39×52 cm

Operating Parameters

Recommended operating parameters:
	Bit Pressure: 0.4 ~ 0.85 KN
	Rotary Speed: 60 ~ 180 r/min
	Pumping Pressure: 8 ~ 18 Mpa
	Sediment Concentration: < 0.5%
The above parameters are only for reference. Optimized parameters are determined by drilling process and lithology of formations on site.

Tcicone bit 9 7/8"WK645(251.00mm) IADC:645 Roller bit ID:WFN021 | Contact information: All sizes and IADC codes of drill bits are available.Special requirements of different models can be customized.If you need,please feel free to contact me,will provide you the best price! |

Tcicone bit9 7/8"WK645(251.00mm)IADC:645_2_wolfni

Tcicone bit9 7/8"WK645(251.00mm)IADC:645_wolfni_3

Tcicone bit9 7/8"WK645(251.00mm)IADC:645|Cutting structure:Hardfaced gage and tooth surfaces.|
